- Adjustable height design and 120 MOA elevation adjustment for a customized fit, allows the shooter to find the most suitable and comfortable height of scope. Position the center of the riflescope tube at a height of 34mm(1.34") to 40mm(1.57") from the base, compatible with 1 inch, 30 mm and 34 mm tube optics
- Precision CNC machined from 6061 T6 aircraft-grade aluminum alloy and finished with colorful anodizing for a unique look and extra durability, passed rigorous tests for accuracy and stability, and allows your scope to hold zero in any harsh and extreme environment
- Double screw design ensures increased stability, with two recoil lugs seamlessly fitting into standard Picatinny rail slots without wobbling, guaranteeing zero hold even under heavy recoil
- Equipped with a bubble level, allowing you to adjust your shooting posture at any time, enhancing your shooting accuracy
- Please note that due to variations in lighting environments, there may be slight differences between the product and the pictures

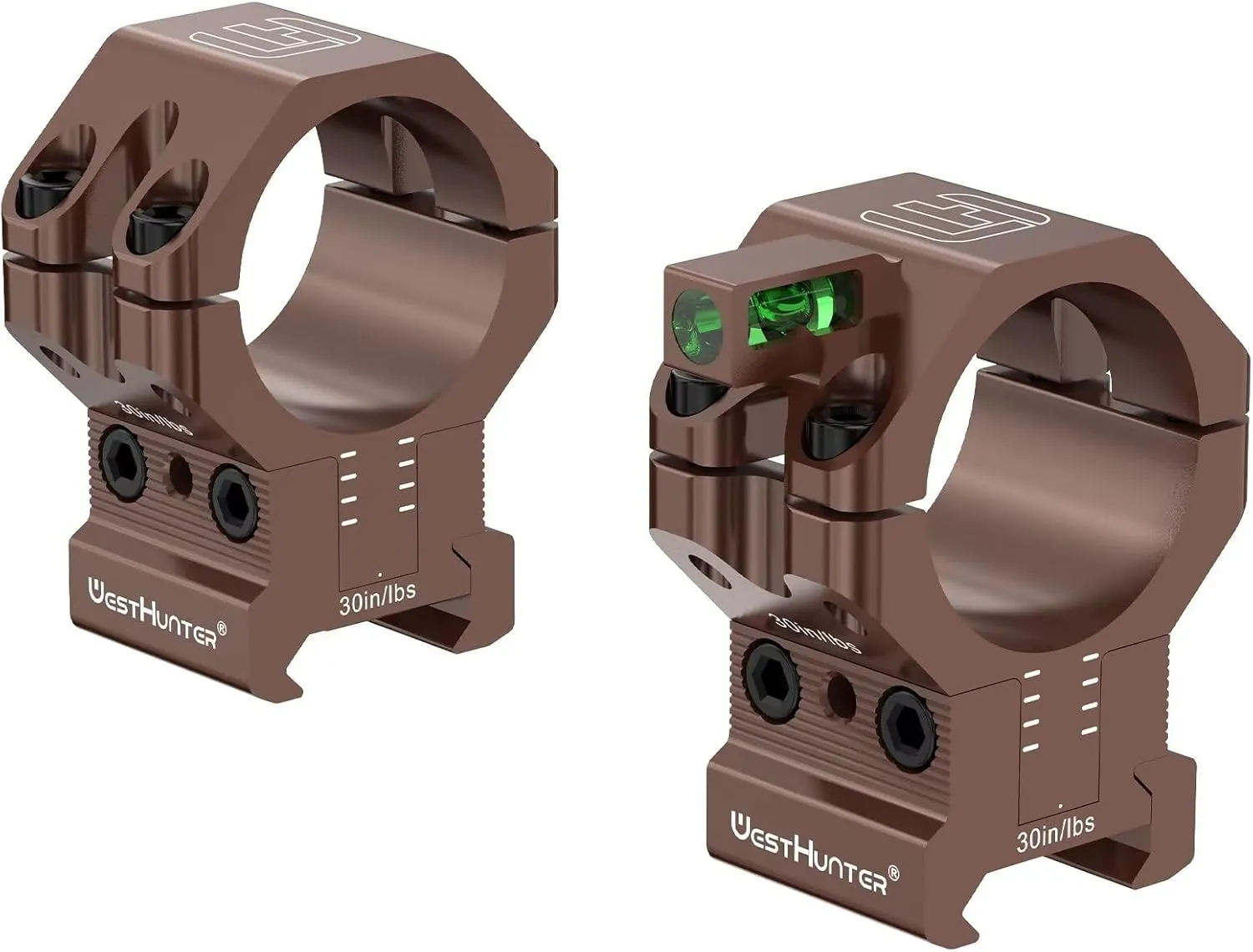

The WestHunter Optics adjustable height scope mount allows you to customize the height of your scope for a comfortable fit, and you can get up to 120 MOA elevation adjustment. The mount is compatible with both 1 inch, 30 mm or 34 mm tube optics and has a center position range of 32mm to 38mm(30mm tube)/34mm to 40mm(34mm tube) from the base.
Made from precision CNC machined 6061 T6 aircraft-grade aluminum alloy, the mount is durable and long-lasting. The double screw structure at the bottom provides maximum stability. The torque values of the upper, middle, and lower bolts are 18 in-lbs/30 in-lbs/30 in-lbs respectively, ensuring a secure and stable fit. This mount is only compatible with the standard 20 mm Picatinny rails.
It's independently designed by WestHunter, ensuring top quality and long-lasting performance.
Details:
Model: WH-201M
Net Weight: 153 g(5.4 oz)
Center Height: 32 mm to 38 mm(1.26 in to 1.5 in)
Color: Black/Blue/Brown/Gold/Red(Magenta)/Silver
Tube Fit: 25.4 mm/30 mm(1 in/1.18 in)
Rail Fit: 20 mm Standard Picatinny Rail
Material: 6061 T6 Aircraft Grade Aluminum Alloy
Package Contains: 6 sets or 3 sets or 1 set of Scope Rings
Model: WH-204M
Net Weight: 163 g(5.75 oz)
Center Height: 34 mm to 40 mm(1.34 in to 1.57 in)
Color: Black/Blue/Brown/Gold/Red(Magenta)/Silver
Tube Fit: 25.4 mm/30 mm/34 mm(1 in/1.18 in/1.34 in)
Rail Fit: 20 mm Standard Picatinny Rail
Material: 6061 T6 Aircraft Grade Aluminum Alloy
Package Contains: 6 sets or 3 sets or 1 set of Scope Rings
Special Note:
Due to different light, the picture you see may be slightly different from the real product.
Due to manual measurement, part of the product parameters may have slight deviations, please understand.
