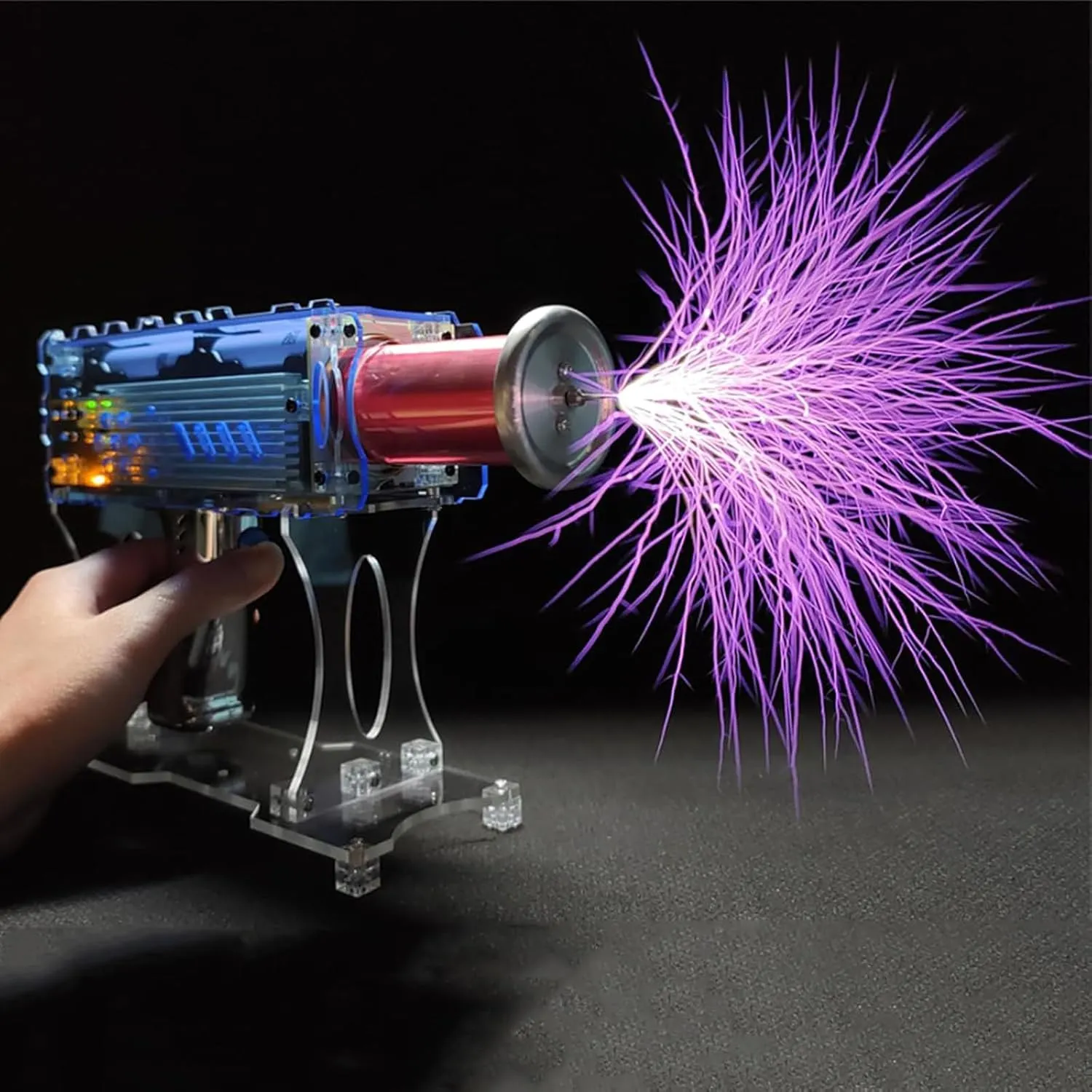

- 【Rechargeable Power】This handheld Tesla coil gun emits 10cm arcs and runs on 4 removable 2900mAh batteries. Supports up to 30,000 arcs per charge and works with 110–240V power
- 【Dual Mode】This Tesla coil kit features a transparent acrylic shell and chrome-plated handle, perfectly blending futuristic aesthetics with practical functions. Switchable between single trigger automatic trigger modes for continuous lightning effects
- 【Precise Control & Built-in Safety】Adjust arc length, pulse width (0–500μs), and frequency via the digital panel. Includes overheat (≥70°C) and low-voltage (≤12V) protection with LED indicators
- 【Learning Kit】Great for science lovers and classrooms. Comes with a 40×75mm coil, charger, and manual ideal for demos, plasma effects, or tech-themed events
- 【Compact & User-Friendly】Lightweight and portable with ergonomic grip. Quick reset and smooth trigger make it perfect for DIY use or science teaching
Product specifications:
Product name: Handheld Tesla Coil
Supply voltage: 12-16.8V
Supply current: Maximum 16.8V*3A
Capacity: Default 2900mAh/48Wh
Standby current: 85mA
Maximum power consumption: 60W
Battery life: 30,000 radians (2Hz)
Arc length: Adjustable - Maximum 10cm
Function mode: Single trigger automatic trigger
Automatic trigger: 1-10Hz (10 levels adjustable, 5Hz default at power on, 1Hz per level, cyclic adjustment)
Power pulse width: 0-500us (7 levels adjustable, 500us default at power on)
Special function: Arc shape can be fine-tuned
Temperature control start condition: ≥70℃ trigger LED5 lights up, device disabled: ≤60℃ reset
Battery low voltage indication: ≤12V trigger LED6 lights up, device disabled;>13V Reset
Electric field strength: 1m/~1500V
Magnetic field strength: 1m/~50uT
Noise intensity: 1m/86db
Charger: Input: 110V-240V 50/60Hz/Output: DC16.8V 1A
Coil: Diameter 40*75mm
Resonant frequency: 1.2MHz
Host size: Length 280mm (including coil) Width 60mm; Height 165mm
Weight: 735g 10g (excluding packaging/charger)
Packing list:
Host*1
