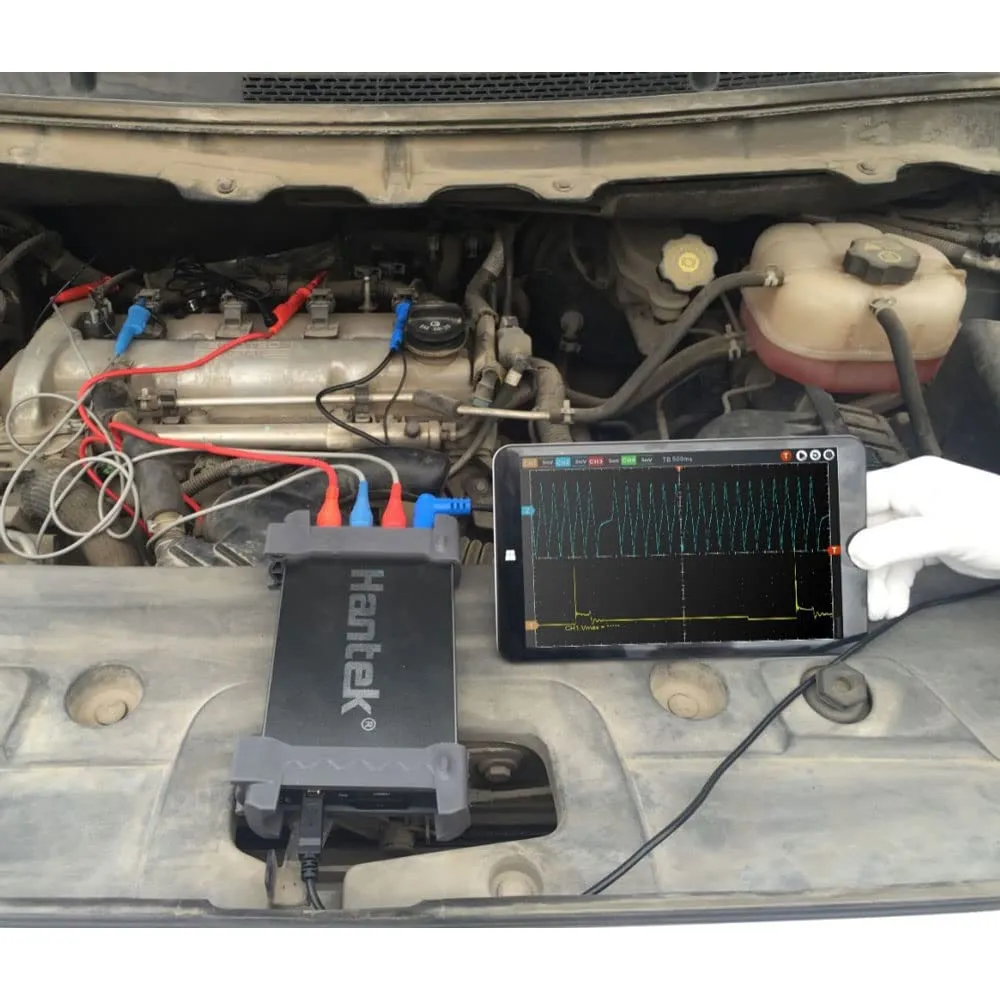

• Automotive USB Oscilloscope 6074BE Kit I II III IV 4 Channel Oscilloscope: Standard equipped over 80 types of automotive measurement function； First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition.Ignition: primary and secondary
• Automotive USB Oscilloscope 6074BE Kit I II III IV 4 Channel Oscilloscope: Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus Performer: Petrol/Diesel Starter and charging circuits
• Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use. Support WIN10/ WIN8/WIN7 etc.USB 2.0 interface plug and play, and no need extra power supply;Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
• Good mechanical design with small size which is easy for carrying. The outer case is made by the same material with ippa-d - Anodised aluminium. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminium alloy surface is greatly improved.4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
• The waveform data could be output to EXCEL,BMP,JPG.Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.FFT spectrum analyzer One computer could connect with multiple oscilloscopes, expand the channel number easily.Provide secondary development library DLL; Provide LabviewVBVCQT developing examples.

• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 9.84 x 11.81 x 3.94 inches; 4.41 Pounds
• Batteries ‏ : ‎ 1 Lithium Polymer batteries required. (included)
• Date First Available ‏ : ‎ July 18, 2023
• Manufacturer ‏ : ‎ Qingdao Hantek Electronic Co., Ltd(Hantek)
• Country of Origin ‏ : ‎ China
